Horizon Touring Products

**PREORDER FOR GU CONSOLE** GU & GQ PATROL FRIDGE CONSOLE MOUNT (WAGONS ONLY)

Regular price $321.00 USD
Regular price Sale price $321.00 USD
Tax included.
PATROL MODEL

GU - Preorder - Shipping 26th of Feb

GQ - In stock ready to ship



GU & GQ FRIDGE CONSOLE - UPDATED VERSION (WAGONS ONLY)

Recently the old model Dometic CF11 has been replaced with the new Dometic CFF12. This new model has forced us to make a few changes to our original fridge mount. We have been able to move the fridge platform down 15mm and shifted it 30mm further back allowing for the best possible driver armrest position and allowing better access to the shifter. The only changes to the layout is now a larger front compartment. The larger size fridge (CFF12) unfortunately will no longer fit in utes (GU or GQ) and there were no alternative brands of fridges that we could get to fit. The only option for a ute would be the smaller cooler / warmers (TB08 etc).

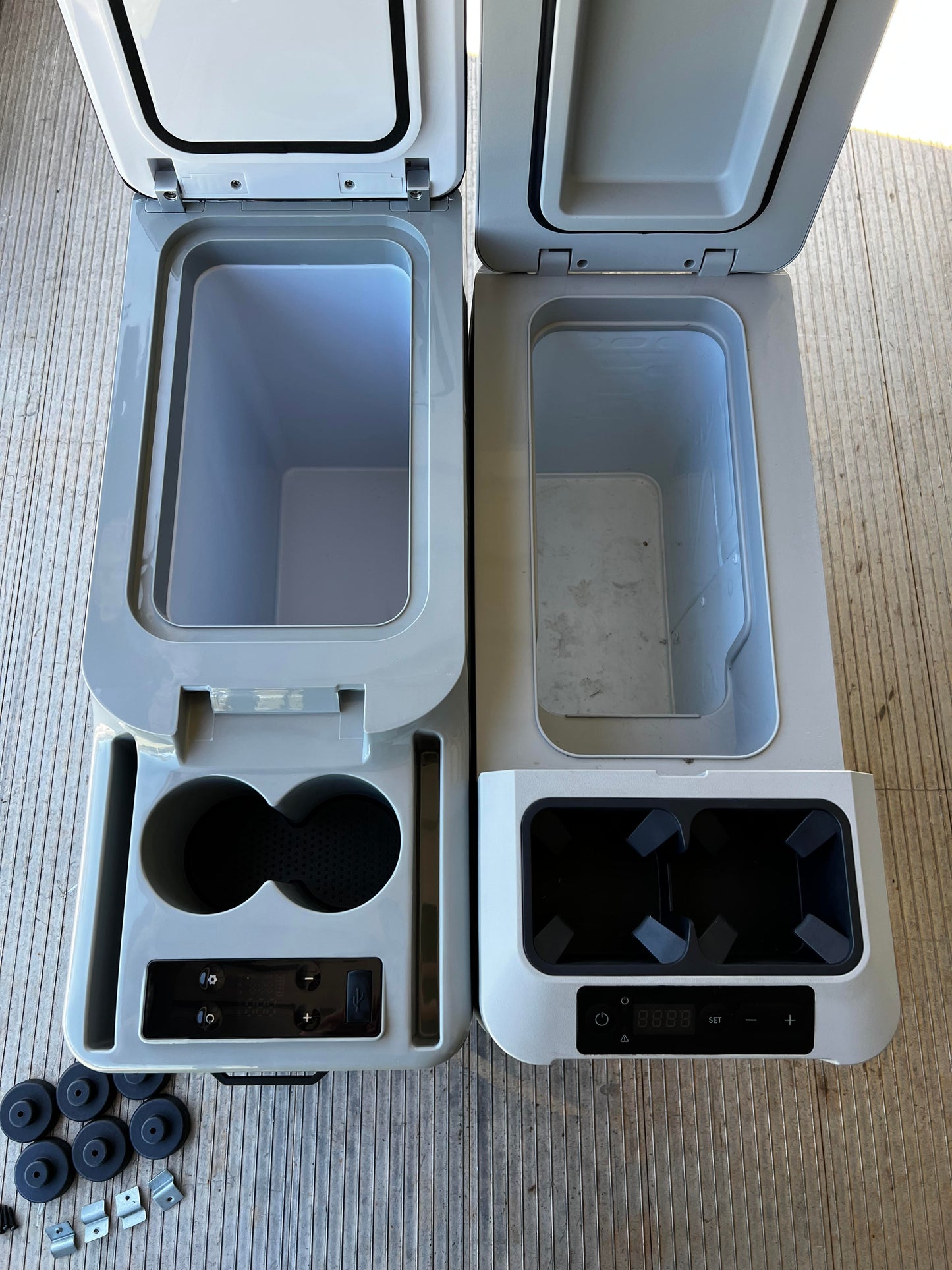

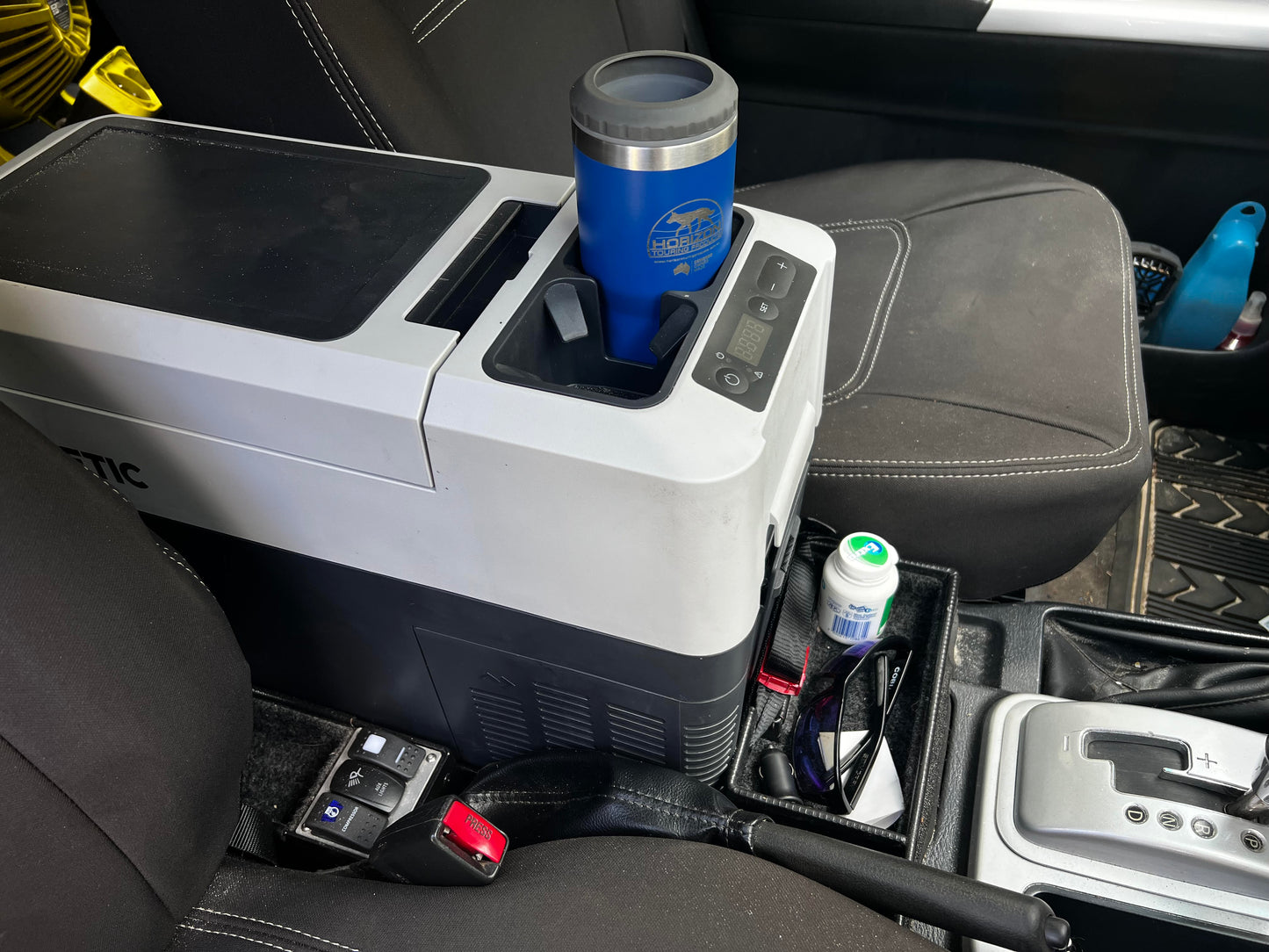

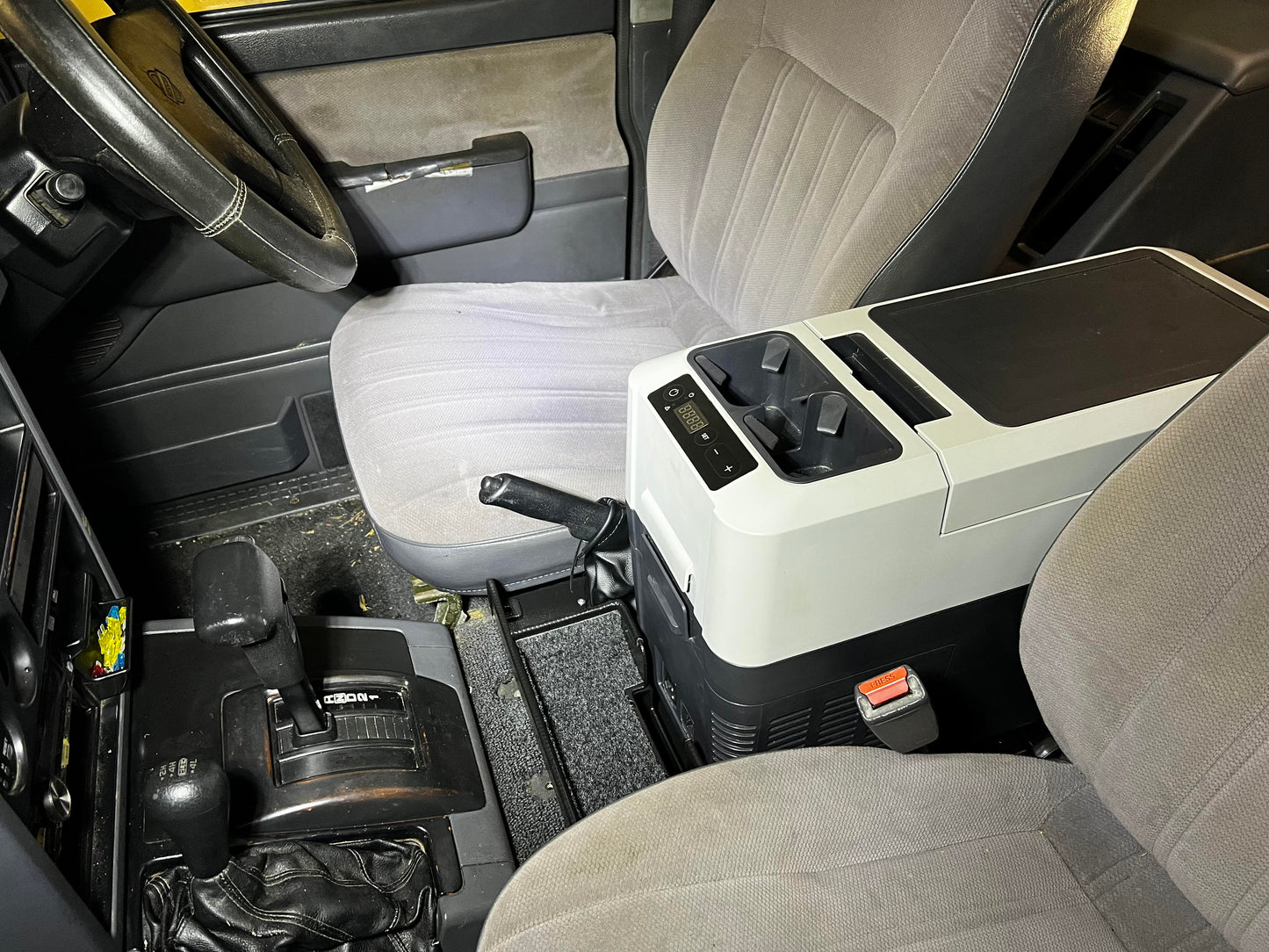

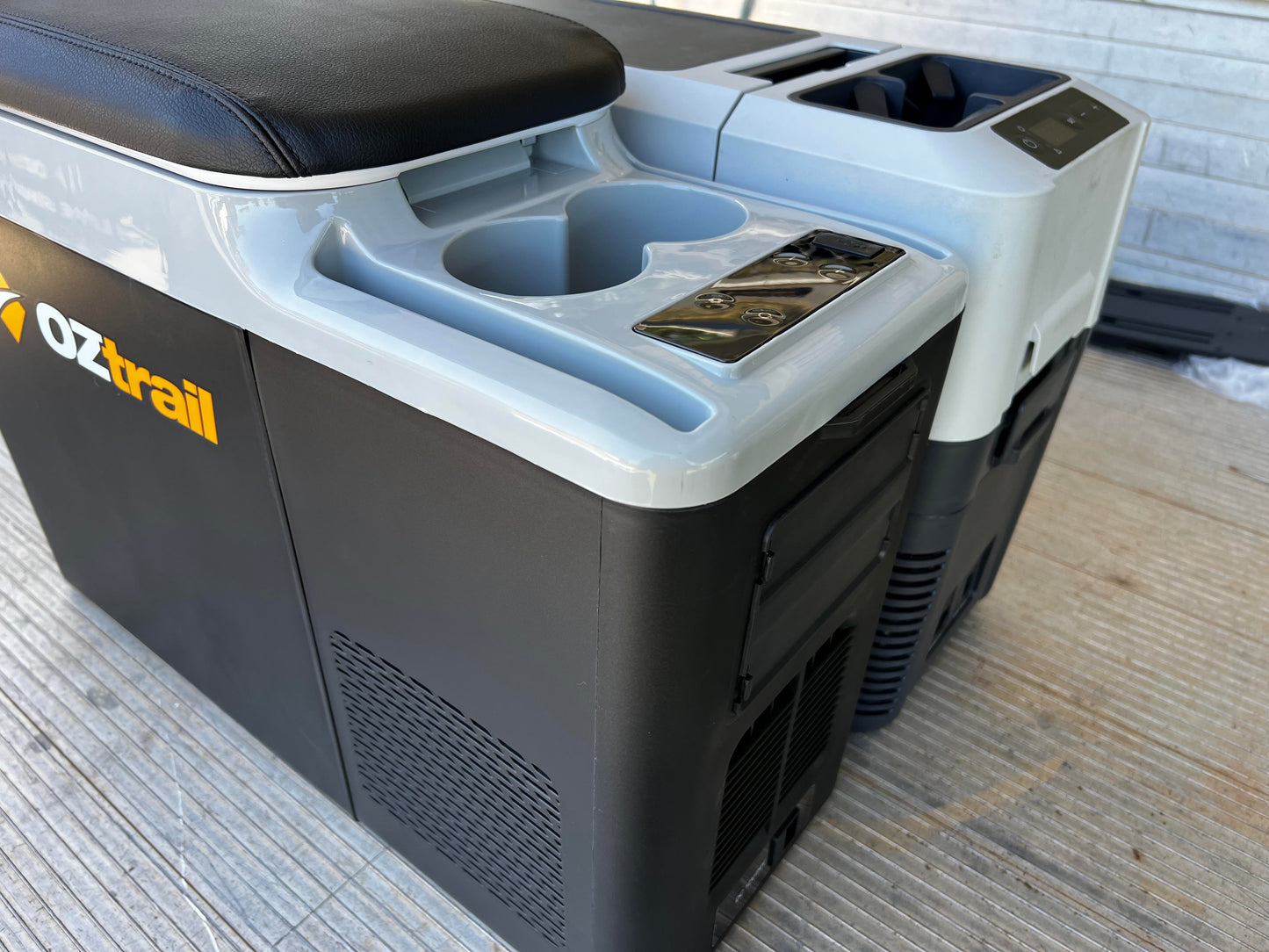

We have now test fitted the mount into GU and GQ wagons and can recommend using the Dometic CFF12 and the Oztrail 15L centre console fridges. Due to them being longer in length there is only a small amount of room between the back of the fridge and the rear seat in GU's and in GQ's it will sit almost against the seat.

PLEASE NOTE: Our current website photo's show only the old style mount. The new version will have a larger front compartment to fill in the gap between the console and the gear surround.

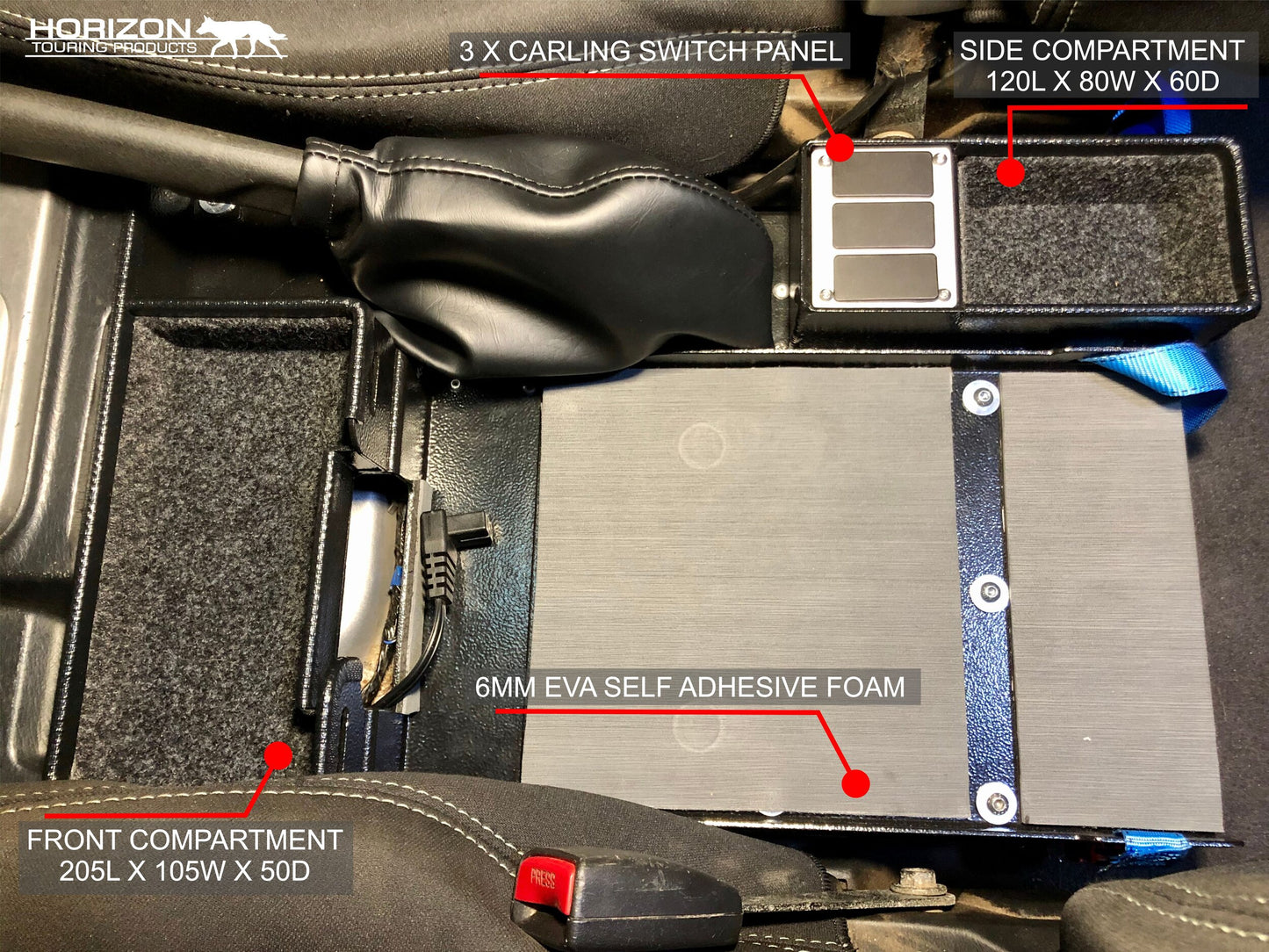

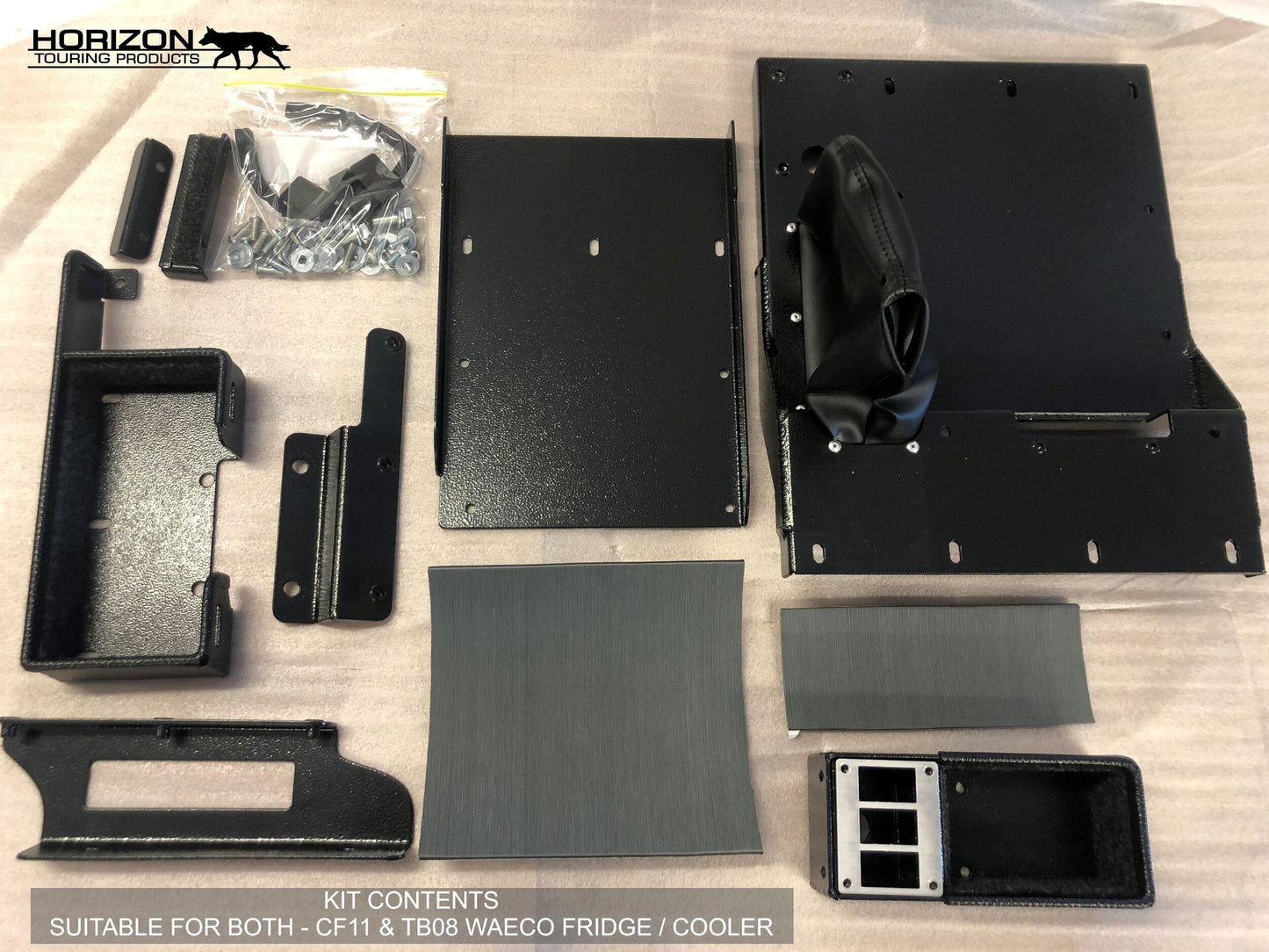

This is a bolt together system which flat packs to fit in a 5KG post bag allowing for us to offer free postage no matter where you are in Australia. Constructed out of laser cut aluminium, the kit comes complete with the following features:

*2.5mm Laser cut main body - powder coated in textured black

*3mm laser cut steel mounting brackets - powder coated black

*All Fasteners and hardware required for mounting

*Front compartment for phone and wallets - carpet lined

*Side compartment which has a removable panel for 3 carling switches - 3 blanks included - carpet lined

*Custom made black vinyl handbrake cover which fastens around your handbrake with a zip tie

*6mm EVA self adhesive foam to protect fridge

**12 Months Warranty on all parts**





**PLEASE NOTE**

*NO FRIDGE / COOLER IS INCLUDED IN THIS KIT

*NO TIE DOWN STRAPS ARE INCLUDED UN THIS KIT

*NOT COMPATABLE WITH REAR AC CONTROLS

*THIS KIT IS ONLY FOR DOMETIC CFF12 AND OZTRAIL 15L FRIDGES, NO OTHER BRANDS HAVE BEEN FITTED NOR TESTED WITH THIS KIT.

*CUSTOMERS ARE RESPONSIBLE FOR ENSURING THAT THEIR VEHICLE HAS ADEQUATE POWER TO RUN THE FRIDGE AND NEED TO FOLLOW THE USER MANUAL FOR THE FRIDGE / COOLER TO ENSURE THEY AREN’T DRAINING THEIR START BATTERY TOO LOW.

*THIS KIT IS ONLY COMPATABLE WITH STANDARD GU & GQ SEATS, SEATS THAT ARE  WIDER THAN STANDARD WILL NOT ALLOW FRIDGE TO FIT

SHIPPING:

ALL PACKAGES WILL BE SENT VIA AUSTRALIA POST

FREE PICKUP IS NOT AVAILABLE FOR THIS PRODUCT, UNLESS ORGANISED PRIOR TO PURCHASE.

DISCLAIMER:

HORIZON TOURING PTY LTD takes no responsibility nor Liability for modifications or improper/incorrect fitment of this product. Any fitment of 12V accessories must installed by a qualified professional.
